- [In] rated current: 230/380V
- Number of wires: 2
- Test voltage AC, V: 2000V
- Core cross-section, mm2: 4
- Insulation material: PVC
- Sting material: Cu
- Min Ambient temperature, °C: -30°
- max Ambient temperature, °C: +50°

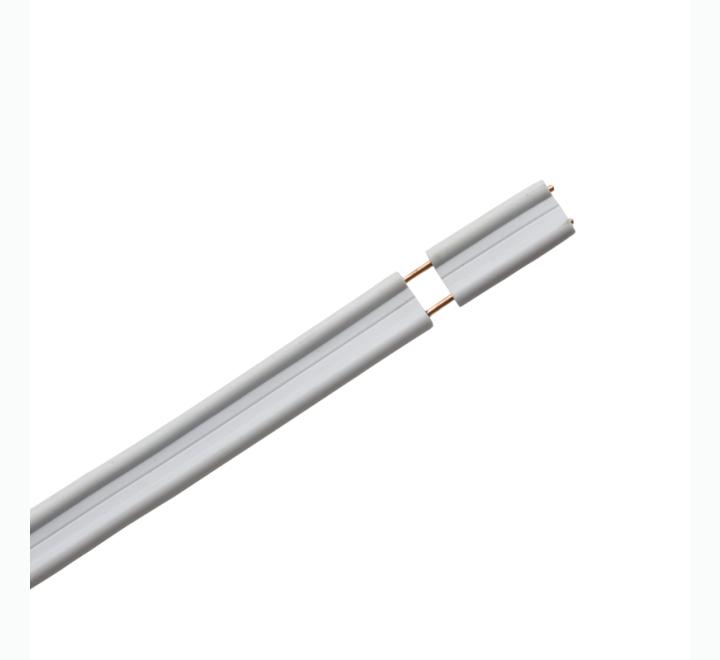

CABLE PVV-MB1 230/380V 2Х4,00 MM2
Flat installation conductor, Cu-wires, PVC-insulation, PVC-sheath Application – Installation conductor with parallel Cu-wires for fixed installation in lighting networks and electric power installations. Construction – Solid Cu wires cl. 1 acc. to BDS 904-84 Insulation: PVC compound Sheath: PVC compound Outer sheath colour: white Technical data – Flat conductor acc. to: BDS 4305-90 Ambient temperature: -30°С to +50°С Temperature of laying: min -5°С Max. operating temperature: +70°C Nominal voltage U0/U: 220/380V Test voltage: 2000V *The cable diameters are approximate. The cable diameters may vary depending on the cable producer, and in accordance with the stated standard.
| [In] rated current | 230/380V |
|---|---|
| Number of wires | 2 |
| Test voltage AC, V | 2000V |
| Core cross-section, mm2 | 4 |
| Insulation material | PVC |
| Sting material | Cu |
| Min Ambient temperature, °C | -30° |
| max Ambient temperature, °C | +50° |
Flat installation conductor, Cu-wires, PVC-insulation, PVC-sheath Application – Installation conductor with parallel Cu-wires for fixed installation in lighting networks and electric power installations. Construction – Solid Cu wires cl. 1 acc. to BDS 904-84 Insulation: PVC compound Sheath: PVC compound Outer sheath colour: white Technical data – Flat conductor acc. to: BDS 4305-90 Ambient temperature: -30°С to +50°С Temperature of laying: min -5°С Max. operating temperature: +70°C Nominal voltage U0/U: 220/380V Test voltage: 2000V *The cable diameters are approximate. The cable diameters may vary depending on the cable producer, and in accordance with the stated standard.
| [In] rated current | 230/380V |
|---|---|
| Number of wires | 2 |
| Test voltage AC, V | 2000V |
| Core cross-section, mm2 | 4 |
| Insulation material | PVC |
| Sting material | Cu |
| Min Ambient temperature, °C | -30° |
| max Ambient temperature, °C | +50° |
