- [Ue] rated operational voltage: 450/750V
- Number of wires: 2
- Test voltage AC, V: 2500V
- Core cross-section, mm2: 1
- Insulation material: CR
- Sting material: Cu
- Min Ambient temperature, °C: -30°
- max Ambient temperature, °C: +60°

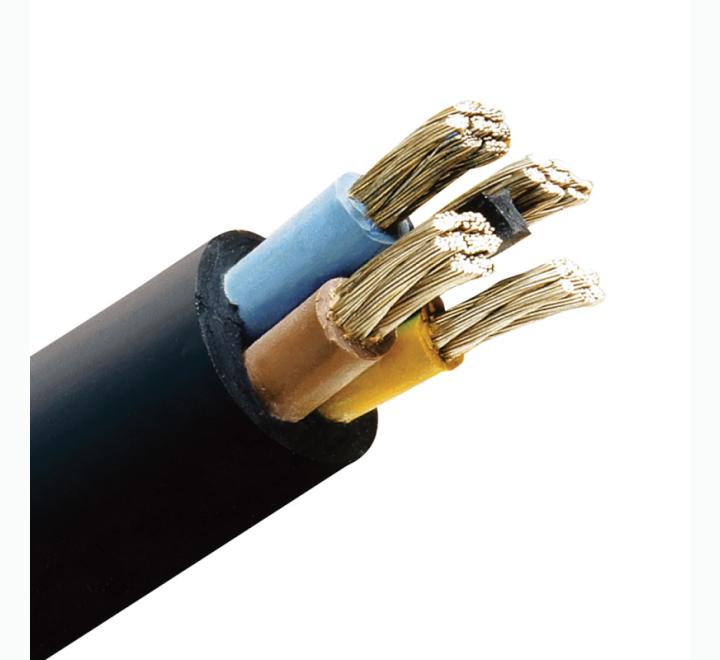

H07RN-F 450/750V 2X1,00 MM2
Rubber flexible cable Application - Cable with rubber insulation and sheath, suitable for connection of machinery and equipment in industrial projects for nominal voltage U0/U – 450/750V, upon middle mechanical stress. Construction - Stranded Cu wires cl. 5 acc. to DIN VDE 0295, IEC Insulation: rubber EPR Inner sheath: rubber EPR Outer sheath colour: black Technical data - Flexible cable acc. to BDS 50525-2-21 Ambient temperature: -30°С - +60°С max Operating temperature: +60°С Nominal voltage UO/U: 450/750V Test voltage: АС – 2500V/50Hz Min. bending radius: fixed installation - 4 x D
| [Ue] rated operational voltage | 450/750V |
|---|---|
| Number of wires | 2 |
| Test voltage AC, V | 2500V |
| Core cross-section, mm2 | 1 |
| Insulation material | CR |
| Sting material | Cu |
| Min Ambient temperature, °C | -30° |
| max Ambient temperature, °C | +60° |
Rubber flexible cable Application - Cable with rubber insulation and sheath, suitable for connection of machinery and equipment in industrial projects for nominal voltage U0/U – 450/750V, upon middle mechanical stress. Construction - Stranded Cu wires cl. 5 acc. to DIN VDE 0295, IEC Insulation: rubber EPR Inner sheath: rubber EPR Outer sheath colour: black Technical data - Flexible cable acc. to BDS 50525-2-21 Ambient temperature: -30°С - +60°С max Operating temperature: +60°С Nominal voltage UO/U: 450/750V Test voltage: АС – 2500V/50Hz Min. bending radius: fixed installation - 4 x D
| [Ue] rated operational voltage | 450/750V |
|---|---|
| Number of wires | 2 |
| Test voltage AC, V | 2500V |
| Core cross-section, mm2 | 1 |
| Insulation material | CR |
| Sting material | Cu |
| Min Ambient temperature, °C | -30° |
| max Ambient temperature, °C | +60° |
